CADE Reef S2 Classic 1500 (Black/White) (150x70x60cm)

The CADE Reef S2 is our range of customisable rimless, sump filtered saltwater Aquariums designed specifically for the advanced reef aquarist.

The Reef S2 has been expertly crafted to enable the aquarist to build a truly personalised Reef Aquarium system without limitation. The Reef S2 combines functional design and unique sophistication to produce a system that both compliments contemporary home decor whilst fulfilling all of your Reef keeping requirements.

Specifications:

TANK

• 1500x700x600 (LxWxH)
• Capacity (Inhabitable): 540L /143 gal
• System Capacity (Total): 640L / 169 gal
• 15mm Opti Clear Glass Tank
• Open Top / Rimless Tank
• Laser Etched Logo
• Perfect Cut Silicone Edges
• Highest Quality German Whacker Silicone
• Double Laminated Black Glass Rear Panel
• White Tank Base Panel
• Concealed 'Twin Intake Weir' (Unique to CADE)
• Super Fine Adjustable Sanking Gate Valve' & Emergency Drain
• Extra large 58.4L / 15.4 gal Gravity Fed ATO (Auto Top Off) System
• Jump Net Cover (NEW)


CABINET

• 1500x700x900 (LxWxH)
• 100% Waterproof Cabinet (Glass/Aluminum)
• Chiller/Accessories Space
• Chiller recommendation: TECO TK1000
• Cable Management & Dosing Pump Shelf
• Dedicated Controller Management (Right Side Door)
• Sump Maintenance Access (Left Side Door)
• Power 16x Plug Power Boards with on/off Switches
• Adjustable Castor Feet for Cabinet Levelling
• Hidden Adjustable Rust Proof Door Hinges
• Hidden Magnetic Door Closers
• Cabinet Supplied Assembled with Sump Installed


SUMP & PLUMBING

• Newly Designed Glass Sump Filtration
• Filter socks 4" (x4)
• Macro Algae Chamber (Removable)
• Media Baskets (x9) for Bio and Chemical Media
• Pre Fabricated Screw Connect Plumbing (No silicone required)
• Reactor Water Feeds (x2)
• Chiller Water Feed (x1)
• One Way Return Valve


CADE REEF 1500 S2 – Tank

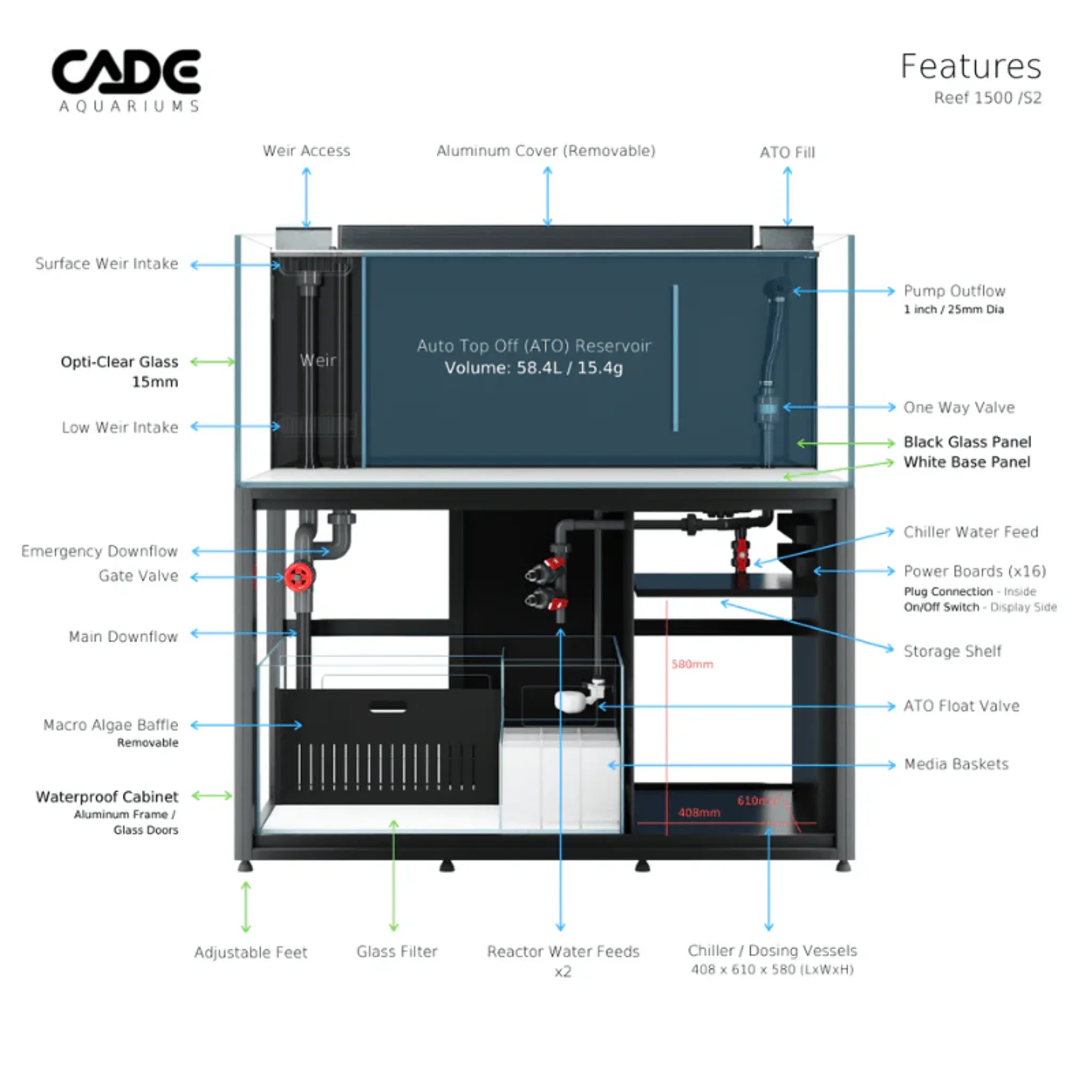

The CADE REEF 1500 S2 Tank is a rimless open-top design boasting super high clarity Opti-Clear glass with flat polished edges constructed using the highest quality German Whacker silicone. Silicone is robotically applied resulting in perfect gaps and a razor clean minimalist finish. All CADE REEF 1500 S2 tanks measure 600mm high and 700mm wide with space split between 600mm of inhabitable tank width and the remaining 100mm allocated to the ‘Backdrop Water Management System’.  This neatly concealed system is home for 2 important functions, the Weir and very large capacity ATO Reservoirs.

This internal rear panel is constructed from highly durable double laminated color impregnated black glass and each area is accessible from the top via side flip covers and a slide/flip central cover specifically designed to accommodate tank mounted lighting brackets. The CADE REEF-S2 ‘Weir’ is unique in that it offers both surface and low water column intakes enabling superior uptake of heavier suspended solids that fail to reach regular surface intakes on regular Weirs. Having an extra intake also serves as an emergency back up should one intake become blocked.

REEF 1500 S2 – Cabinet

CADE Reef 1500 Series 2 cabinets are now all 600mm and require no assembly whatsoever. We deliver them to you completely assembled (sump installed) within a solid plywood box. Simply open the box, position the cabinet, rest the tank on top and screw your plumbing together. It’s that simple! The Reef S2 cabinet has both front and side doors with hinges and magnetic latches cleverly hidden within the framework. The right side cabinet door accesses the Controller Management area with power on/off switches displayed for easy access. This area is specifically designed for mounting electrical controllers keeping them neat and safely away from saltwater. The REEF Series 2 models now include a Chiller / Accessories space on the right side of the cabinet on models Reef 900 S2 and up. The 700mm depth provides enough space for both a chiller and other items such as dosing vessels etc. Above this a shelf is also provided for items such as a dosing pump and this area also provides space to neatly manage power cables that connect to the internal plugs on the Power Distribution Unit. There are 16x plugs included on the REEF 1500 S2.

The cabinet also has a foam padding pre-installed to protect the tank and we’ve also added industrial grade adjustable caster feet for leveling out your Aquarium on uneven floors. CADE Cabinets are constructed using materials that are 100% waterproof. We are all aware that wood, metal, and saltwater do not equate to a durable hard-wearing cabinet and because water spills are inevitable in our hobby we’ve constructed our cabinets using completely waterproof materials aluminum, glass, and industrial plastic. These materials will never swell, rust or deteriorate. Even the magnetic door closes are hidden inside the framework to prevent them from corroding. The cabinet color is anodized to the aluminum frame which provides a perfect hardwearing finish and is also unaffected by corrosive saltwater. Rest assured that the CADE REEF 1500 S2 cabinet will last you a lifetime.

CADE REEF 1500 S2 – Filtration & Plumbing

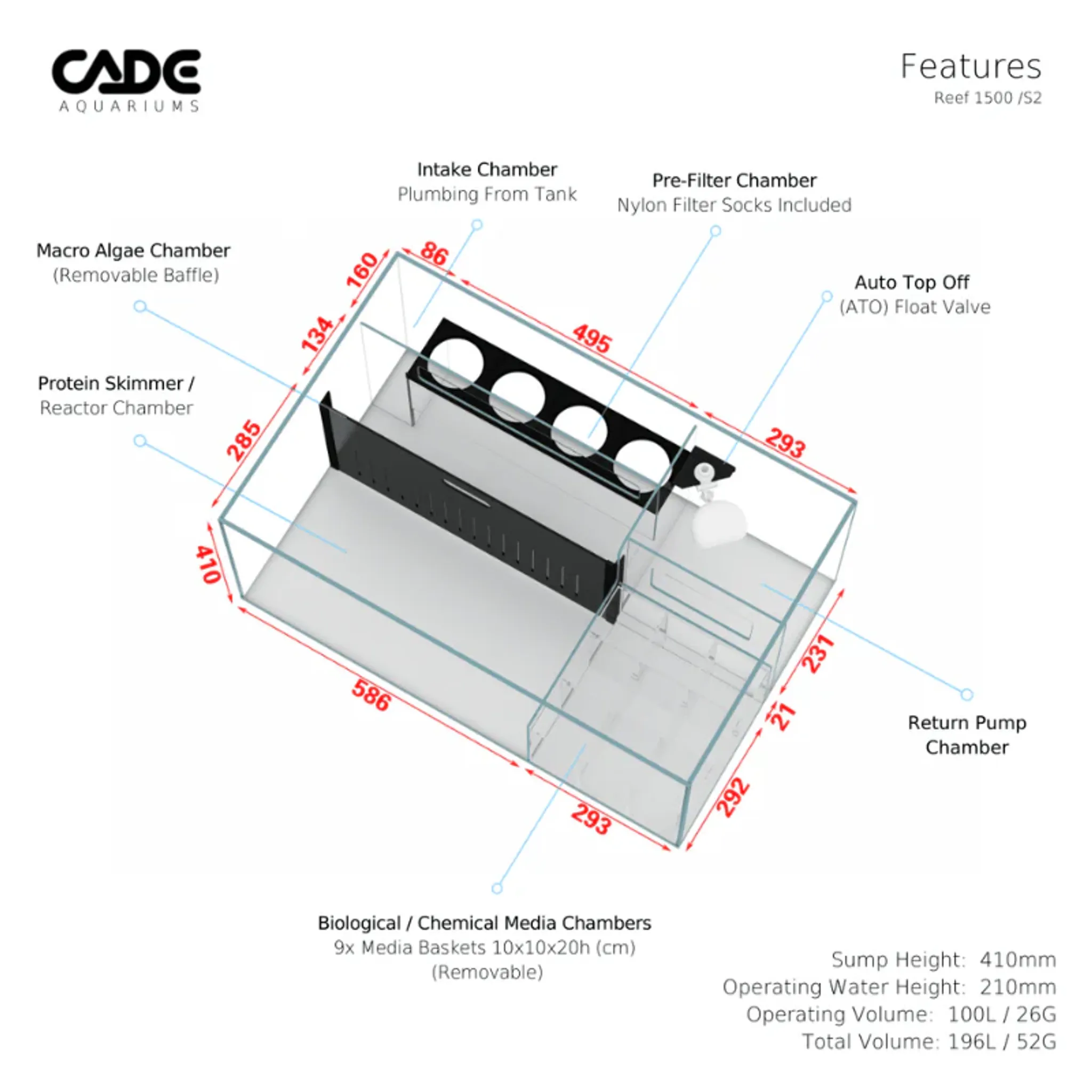

CADE REEF 1500 S2 Sump filtration is a uniquely designed system that maximizes space and provides endless versatility no matter what your filtration preferences are. Every model has been equipped with pre-filtration sock/s a large Protein Skimmer / Reactor chamber, a Bio / Chemical Media Chamber and a Return Pump Chamber which also houses the ATO refill float valve that connects to the water storage reservoir in the rear of the tank. A handy inclusion to the PR-S2 sumps is individually removable 10x10x20h (cm) media baskets which can be used for any form of Biological or Chemical filter media. Filter baskets offset the need for additional media reactors such as a Carbon Reactor which ultimately saves space and additional expenses.

A Macro Algae Refugium Chamber is included in models REEF 1200 S2, REEF 1500 S2, and REEF 1800 S2. This feature is optional and the acrylic panel is removable if desired. CADE REEF 1500 Series 2 Plumbing is a pre-fabricated screw fit design that installs in minutes and requires no silicone. The plumbing starts in the weir with 2x down flow pipes (main drain & emergency). The main is fitted with a super fine adjustable gate valve (industry standard) for silencing the weir. The gate valve also enables adjustment of the Aquariums displays water height between the lower main drain and the taller emergency drain. Return flow to the Aquarium is via a  1″ PVC pipe that is neatly concealed within the ATO reservoir chamber and feeds back into the tank via a directional adjustment outlet. The entire system is extremely neat and is absolutely silent during operation.
